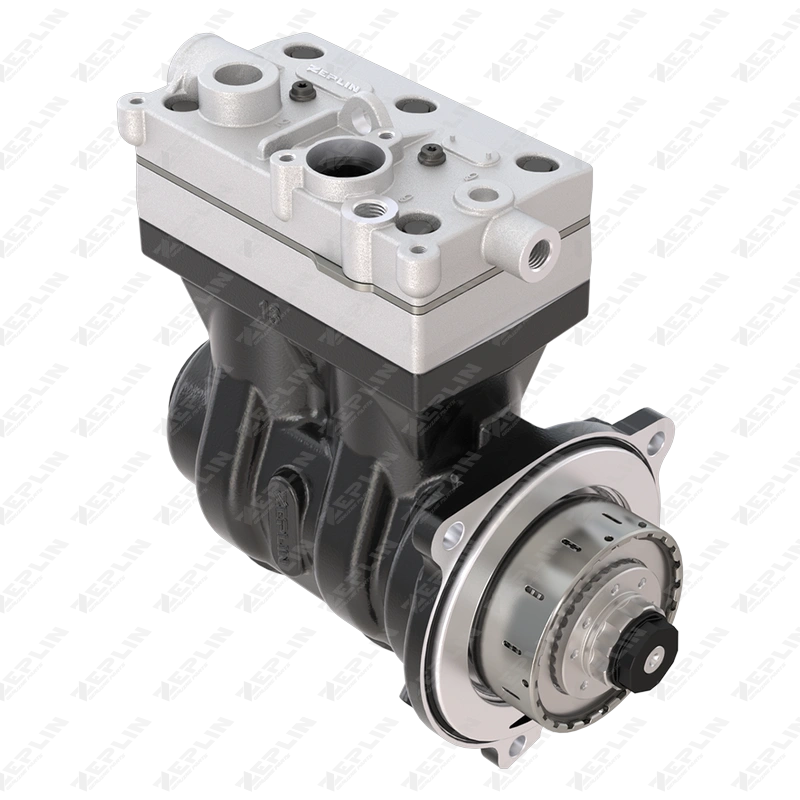

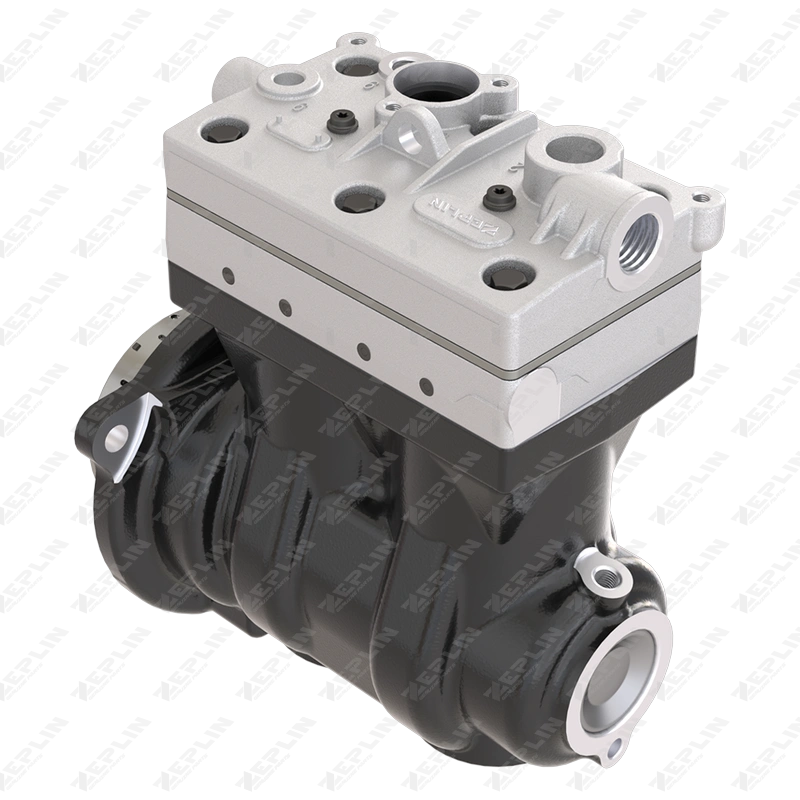

    With Clutch Compressor

    ZEPLIN® No: ZEP0024157

    Compare

    GTIN
    8680437231967

    OEM Numbers

    Volvo
    Wabco

    Brand and Model

    Volvo

    FH13,

    FM13,

    FM11

    Technical Specifications

    Brand ZEPLIN Original

    Cooling Water

    Crankshaft Thread M16x1 RH

    Cylinder Diameter Ø85 mm

    Direct Action Yes

    ESS Feature Yes

    Maximum Working Pressure 14 bar

    Number of Cylinders 2

    Piston Stroke 56 mm

    Port 0 Ø34.9 mm

    Port 2 M26x1.5

    Port 4 M16x1.5

    Port 8.1 M12x1.5

    Port 9 M16x1.5

    Port 9.1 M16x1.5

    Port 9.2 M16x1.5

    Volume 636 cm³

    Water Cooled Valve Plate Yes

    Weight 23.9 kg
